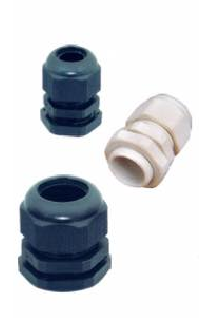

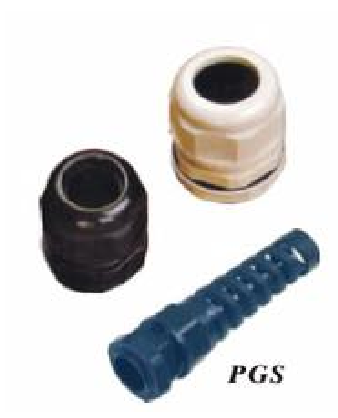

Types Available:

• Material: made from UL Nylon 66, 94V-2 and tight ring from rubber.
• Feature: (1.) Special designation, good strength and none damage to electrical machine. (2.) Not need to disassembly the fix terminal, cable can be inserted through directly then tighten easy and save time.
• Application: Used for machinery control box, distribution plate, machine and electrical etc.
• Color: Black
• Protection: 1p68
• Working Temperature: -40° C – 100° C
• Standard: IEC698

MODEL	D1	D2	L1	L2	L3	B1	CABLE RANGE
PG-07	12.0	8.1	9	14.5	14.0	6.4	3-6.5
PG-09	16.0	11.0	9	15.5	16.0	8.6	4-8
PG-11	17.9	13.0	9	15.5	18.0	10.7	5-10
PG-13.5	20.2	15.0	9	17.8	19.0	13.3	6-12
PG-16	22.0	17.0	11	18.5	19.0	14.3	10-14
PG-19	24.0	19.0	11	18.6	21.0	15.5	12-15
PG-21	26.9	21.8	11	18.7	22.0	16.7	13-18
PG-25	29.8	24.0	13	22.6	24.0	19.2	15-22
PG-29	36.0	28.0	13	23.6	24.0	24.8	18-25
PG-36	45.7	39.0	15	25.1	27.0	30.7	22-32
PG-42	54.0	46.0	15	25.9	29.0	35.6	30-38
PG-48	59.0	51.0	16	28.1	30.0	41.4	34-44
PG-63	71.0	63.5	28	31.5	44.0	55	42-54

MODEL	ENTRY METRIC	CABLE RANGE	D1	PANEL MOUNTING HOLE	L1	L3
MG-12	M12x1.25	4.5-8	12	12.5	8.5	19
MG-16	M16x1.5	6-10	16	16.5	15	22
MG-20	M20x1.5	9-14	20	20.5	15	27
MG-20	M20x1.5	9-14	20	20.5	15	27
MG-25	M25x1.5	13-18	25	25.5	15	33
MG-32	M32x1.5	18-25	32	33	15	41
MG-40	M40x1.5	24-30	40	41	20	50
MG-50	M50x1.5	30-40	50	51	22	62
MG-63	M63x1.5	40-50	63	64	25	75
