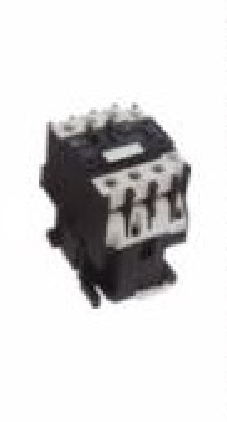

CJX2-D (LC1-D) Series Magnetic Contactor

		TYPE	MAX. VOLUME OF MOTOR/KW	OPERATING CURRENT Ac3 (A) 220V	RATED HEATING CURRENT (A)	LIFE OF OPERATION
		CJX2-D0910	2.2	9	20	20
		CJX2-D1210	3.0	12	20	20
		CJX2-D1810	4.0	18	32	20
		CJX2-D2510	5.5	25	40	20
		CJX2-D3210	7.5	32	50	20
		CJX2-D4011	11	40	60	20
		CJX2-D5011	15	50	80	20
		CJX2-D6511	18.5	65	80	20
		CJX2-D8011	22	80	125	10
		CJX2-D9511	25	95	125	10
		CJX2-F115	30	115	200	20
		CJX2-F150	40	150	250	20
		CJX2-F185	55	185	275	20
		CJX2-F225	63	225	315	20
		CJX2-F265	75	265	350	20
		CJX2-F330	100	330	400	20
		CJX2-F400	110	400	500	10
		CJX2-F500	147	500	700	10
		CJX2-F630	200	630	1000	10

			TYPE	SETTING CURRENT RANG (A)
			LR2-D13	1.0-1.6, 1.25-2.0, 1.6-2.5, 2.5-4.0, 4-6, 5.5-8, 7-10, 9-13, 12-18, 17-25
			LR2-D23	23-32, 28-36, 30-40
			LR2-D33	23-32, 30-40, 37-50, 48-65, 55-70, 63-80, 80-93

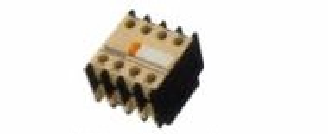

Aux Contact Accessories

2P TOP MOUNTING			4P TOP MOUNTING
F4-11	F4-20	F4-02	F4-22	F4-40	F4-04	F4-13	F4-31
1NO-1NC	2NO	2NC	2NO-2NC	4NO	4NC	1NO-3NC	3NO-1NC

SIDE MOUNTING		DELAY MOUNTING
F8-11	F8-20	HA2-DT0	HA2-DT2	HA2-DT4
1NO-1NC	2NC	0.1~3s	0.1~3s	0.1~180s

New CJX2D (LC1D) Series Magnetic Contactor

		TYPE	MAX. VOLUME OF MOTOR/KW	OPERATING CURRENT Ac3 (A) 220V	RATED HEATING CURRENT (A)	LIFE OF OPERATION
		CJX2-D0910	2.2	9	20	20
		CJX2-D1210	3.0	12	20	20
		CJX2-D1810	4.0	18	32	20
		CJX2-D2510	5.5	25	40	20
		CJX2-D3210	7.5	32	50	20
		CJX2-D4011	11	40	60	20
		CJX2-D5011	15	50	80	20
		CJX2-D6511	18.5	65	80	20
		CJX2-D8011	22	80	125	10
		CJX2-D9511	25	95	125	10

New LR2D Series Thermal Overload Relay

			TYPE	SETTING CURRENT RANG (A)
			LR2-D13	1.0-1.6, 1.25-2.0, 1.6-2.5, 2.5-4.0, 4-6, 5.5-8, 7-10, 9-13, 12-18, 17-25
			LR2-D23	23-32, 28-36, 30-40
			LR2-D33	23-32, 30-40, 37-50, 48-65, 55-70, 63-80, 80-93
			LR2-D53	80-104, 95-120, 132-220

LE1-D Series Magnetic Starter

		TYPE		MAX POWER Ac3 DUTY/220V		OPERATIONAL CURRENT
		LE1-D09		2.2KW	1-2HP	9A
		LE1-D12		3KW	3HP	12A
		LE1-D18		4KW	5HP	18A
		LE1-D25		5.5KW	7.5HP	25A
		LE1-D32		7.5KW	10HP	32A
		LE1-D40		11KW	15HP	40A
		LE1-D50		15KW	20HP	50A
		LE1-D65		18.5KW	25HP	65A
		LE1-D80		22KW	30HP	80A
		LE1-D95		25KW	33HP	95A

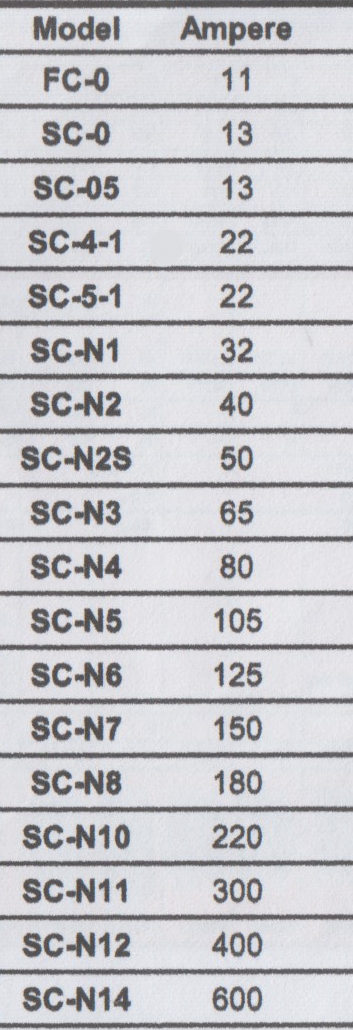

SC Series Magnetic Contactor

NEW TYPE	MAX OPERATIONAL CURRENT Ac3			ADMISSIBLE POWER		AUX-CONTACT CONTACTS
	220V	440V	ENDURANCE	220V-3∅	440V-3∅
SC-0	13A	12A	2.0×10^6	3.5kW/4.7HP	5.5kW/7.5HP	1NO
SC-05	13	12	2.0×10^6	3.5/4.7	5.5/7.5	1NO+1NC
SC-4-1	22	22	2.0×10^6	5.5/7.5	11/15	1NO
SC-5-1	22	22	2.0×10^6	5.5/7.5	11/15	1NO+1NC
SC-N1	32	32	1.5×10^6	7.5/10	15/20	2NO+2NC
SC-N2	40	40	1.5×10^6	11/15	18.5/25	2NO+2NC
SC-N2S	50	50	1.5×10^6	15/20	22/30	2NO+2NC
SC-N3	65	65	1.5×10^6	18.5/25	30/40	2NO+2NC

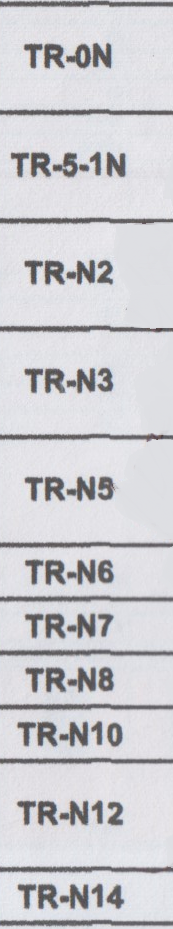

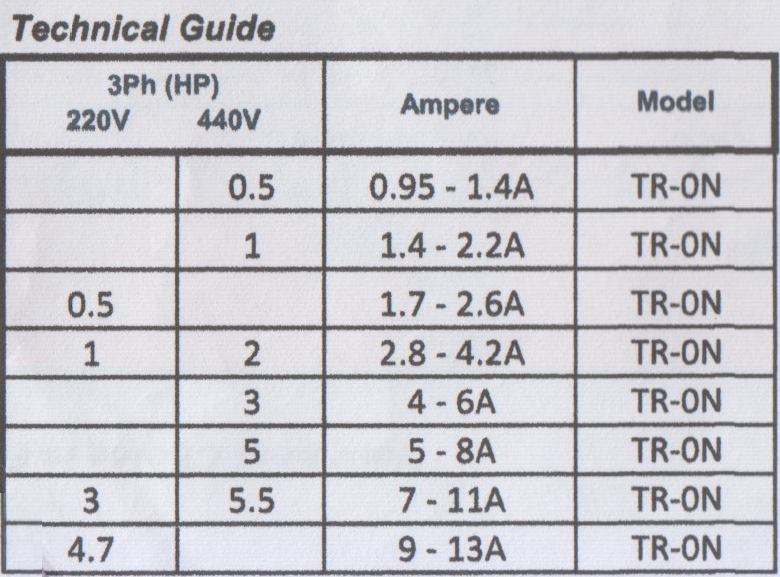

TR-N Series Thermal Overload Relay

	TYPE	FOR USE WITH	SETTING CURRENT RANG (A)
	TR-0N/3	SC-0, SC-05	0.8-1.2, 0.95-1.4, 1.4-2.2, 1.7-2.6, 2.2-3.4, 2.8-4.2, 4-6, 5-8, 6-9, 7-11, 9-13
	TR-5-1N/3	SC-4-1, SC-5-1	2.8-4.2, 5-8, 7-11, 9-13, 12-18, 16-22
	TR-N2/3	SC-N1, SC-N2	9-13, 12-18, 18-26, 24-36, 32-42
	TR-N3/3	SC-N2S, SC-N3	18-26, 24-36, 28-40, 34-50, 45-67

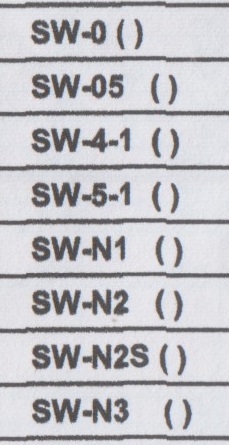

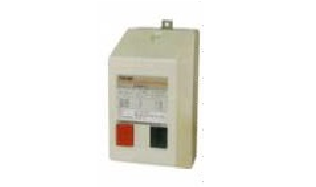

SW Series Magnetic Starters, w/Enclosure & Pushbutton

MODEL	OVERLOAD RELAY	3 PHASE METER RATING				FULL LOAD CURRENT	HEATER RANGE
		220V kW/HP		440V kW/HP
SW-0P	TR-0N/3			0.75	1		1.4-2.2A
SW-0P	TR-0N/3	0.37	1/2			2.0A	1.7-2.6A
SW-0P	TR-0N/3	0.55	3/4	1.1	11/2	2.8A	2.2-3.4A
SW-0P	TR-0N/3	0.75	1	1.5	2	3.6A	2.8-4.2A
SW-0P	TR-0N/3	1.1	11/2	2.2	3	5.2A	4.0-6.0A
SW-0P	TR-0N/3	1.5	2			6.8A	5.0-8.0A
SW-0P	TR-0N/3			3.7	5		6.0-9.0A
SW-0P	TR-0N/3	2.2	3			9.6A	7.0-11A
SW-0P	TR-0N/3			5.5	71/2		9.0-13A
SW-05P	TR-0N/3	1.5	2			6.8A	5.0-8.0A
SW-05P	TR-0N/3			3.7	5	6.5A	6.0-9.0A
SW-05P	TR-0N/3	2.2	3	4	5	9.6A	7.0-11A
SW-05P	TR-0N/3	3.5	4.7	5.5	71/2	13A	9.0-13A
SW-4-1P	TR-5-1N	3.7	5	7.5	10	15.2A	12-18A
SW-4-1P	TR-5-1N						16-22A
SW-4-1P	TR-5-1N						12-18A
SW-4-1P	TR-5-1N	5.5	71/2	11	15	22A	16-22A

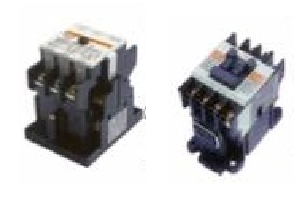

S-K Series Magnetic Contactor

TYPE	ITH (A) RATED HEATING CURRENT	RATED WORKING CURRENT (A)			CONTROL POWER PE KW
		220V	380V	660V	220V	380V	660V
S-K10	20	11	9	5	2.5	4	4
S-K11	20	13	12	7	3.5	5.5	5.5
S-K12	20	13	12	7	3.5	5.5	5.5
S-K18	25	18	16	9	4	6	5.5
S-K20	32	22	22	9	5.5	11	7.5
S-K21	32	22	22	9	5.5	11	7.5
S-K25	50	30	30	12	7.5	15	11
S-K35	60	40	40	17	11	18.5	15
S-K50	80	55	50	26	15	22	22
S-K65	100	65	62	35	18.5	30	30
S-K80	135	85	85	52	22	45	45
S-K95	135	105	105	65	30	55	55

TH-K Series Thermal Overload Relay

	TYPE	FOR USE WITH	SETTING CURRENT RANG (A)
	TH-K12	S-K10, S-K11, S-K12	0.2-0.28, 0.28-0.42, 0.4-0.6, 0.55-0.85, 0.7-1.1, 1-1.6, 1.4-2, 1.7-2.1, 2-3, 2.8-4.4, 4-6.5, 5.2-8, 7-11, 9-13
	TH-K20	S-K18, S-K20, S-K21, S-K25, S-K35	1.7-2.1, 2-3, 2.8-4.4, 4-6, 5.2-8, 7-11, 0-13, 12-18, 16-22, 18-20, 24-34, 30-40
	TH-K60	S-K50, S-K65, S-K80, S-K95	12-18, 16-22, 18-26, 23-34, 30-40, 34-50, 43-65, 54-80, 65-93, 85-105

MS-K Series Magnetic Starter

		TYPE		MAX POWER Ac3 DUTY/220V		OPERATIONAL CURRENT
		MS-K10		2.2KW	3.3HP	11A
		MS-K11		3.5KW	4.7HP	13A
		MS-K18		4.5KW	6HP	18A
		MS-K20		5.5KW	7.5HP	22A
		MS-K21		5.5KW	7.5HP	22A
		MS-K25		7.5KW	10HP	30A
		MS-K35		11KW	15HP	40A
		MS-K50		15KW	20HP	55A
		MS-K65		18.5KW	25HP	65A
		MS-K80		22KW	30HP	85A
		MS-K95		30KW	40HP	105A

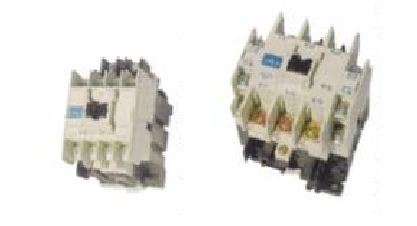

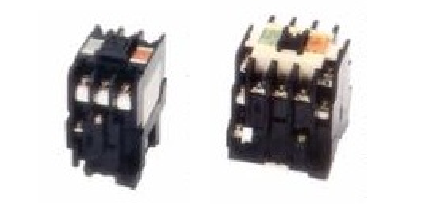

S-N Series Magnetic Contactor

TYPE	ITH (A) RATED HEATING CURRENT	RATED WORKING CURRENT (A)			CONTROL POWER PE KW
		220V	380V	660V	220V	380V	660V
S-N10	20	11	9	5	2.5	4	4
S-N11	20	13	12	7	3.5	5.5	5.5
S-N12	20	13	12	7	3.5	5.5	5.5
S-N18	25	18	16	9	4	6	5.5
S-N20	32	22	22	9	5.5	11	7.5
S-N21	32	22	22	9	5.5	11	7.5
S-N25	50	30	30	12	7.5	15	11
S-N35	60	40	40	17	11	18.5	15
S-N50	80	55	50	26	15	22	22
S-N65	100	65	62	35	18.5	30	30
S-N80	135	85	85	52	22	45	45
S-N95	135	105	105	65	30	55	55

TH-N Series Thermal Overload Relay

	TYPE	FOR USE WITH	SETTING CURRENT RANG (A)
	TH-N12	S-N10, S-N11, S-N12	0.2-0.28, 0.28-0.42, 0.4-0.6, 0.55-0.85, 0.7-1.1, 1-1.6, 1.4-2, 1.7-2.1, 2-3, 2.8-4.4, 4-6.5, 5.2-8, 7-11, 9-13
	TH-N20	S-N18, S-N20, S-N21, S-N25, S-N35	1.7-2.1, 2-3, 2.8-4.4, 4-6, 5.2-8, 7-11, 0-13, 12-18, 16-22, 18-20, 24-34, 30-40
	TH-N60	S-N50, S-N65, S-N80, S-N95	12-18, 16-22, 18-26, 23-34, 30-40, 34-50, 43-65, 54-80, 65-93, 85-105

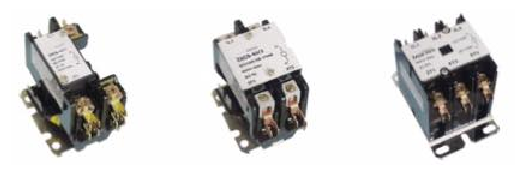

Air Conditioner Contactor

TYPE	FULL LOADS AMPS	RESISTIVE AMPS	LOCKE ROTOR AMPS/240V
DCK3-1P	20/25/30/40A	30/35/40/50A	120/125/125/160A
DCK3-2P	20/25/30/40A	30/35/40/50A	120/125/125/160A
DCK3-3P	20/25/30/40A	30/35/40/50A	120/125/125/160A

Magnetic Contactor

Thermal Overload Relay

Full Magnetic Starters (Open, Encl. and PB) and Reversing (RM and RMC)
